Lagan Balcony railing-Fence section aluminium

The fence section is part of the fence post Lagan, don’t forget to order a post and accessories.

Here you will find the fence post that is ordered together with the fence section https://www.recalgarden.com/staketstolpar/lagan-staketstolpe/

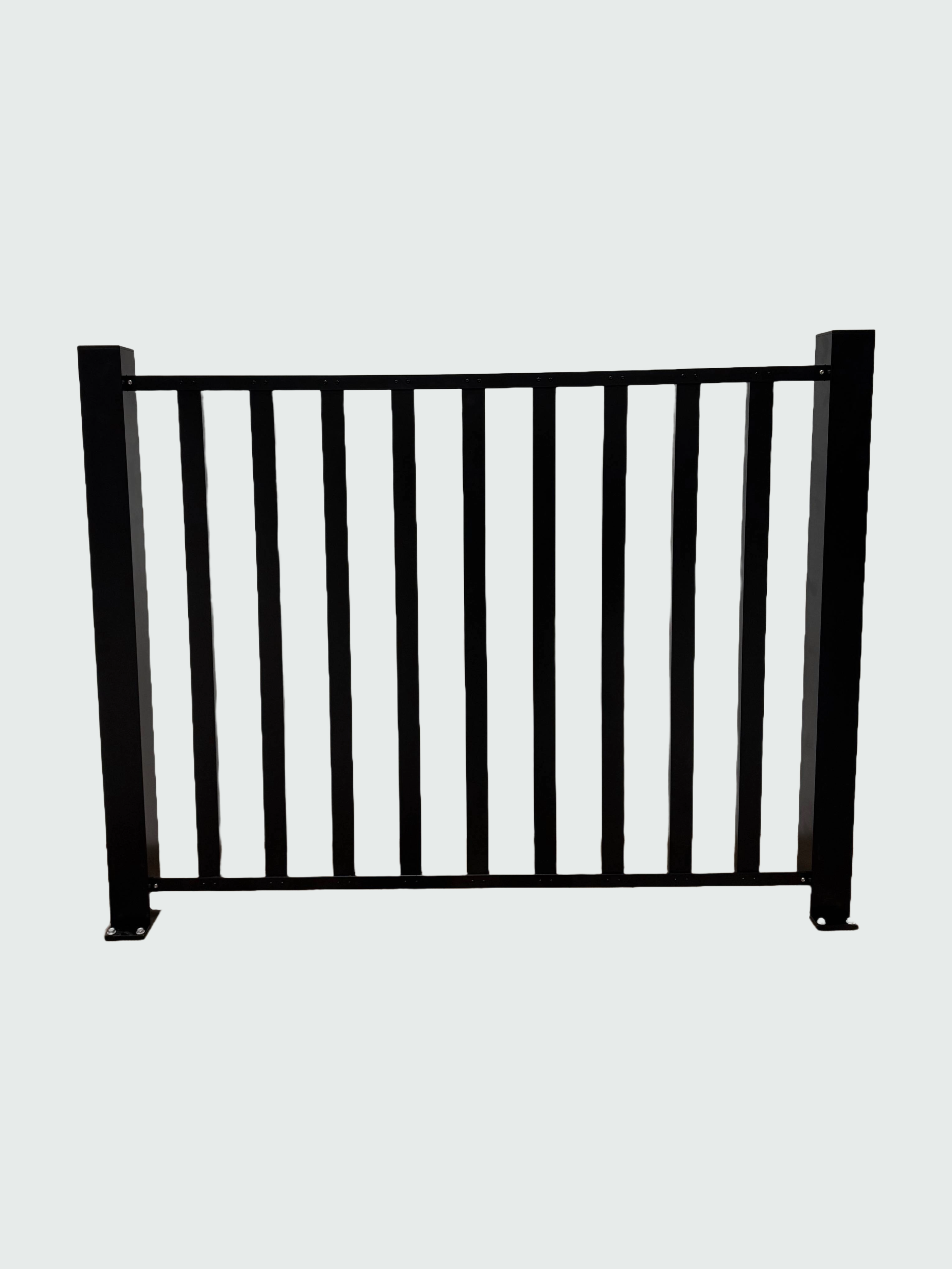

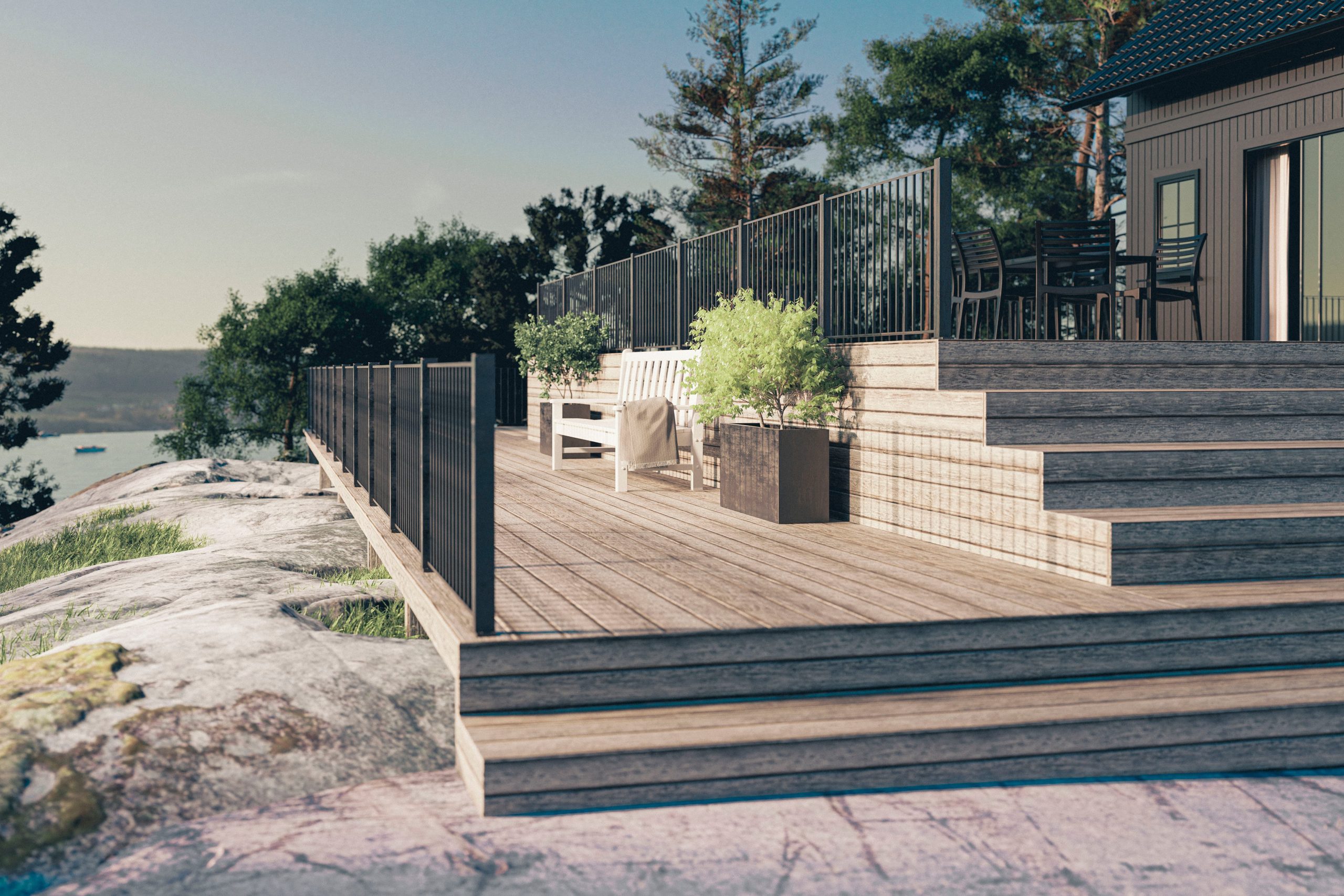

Lagan is a fence section made of maintenance-free aluminium. The fence section fits our fence post Lagan and you can easily assemble your fence for a balcony or patio with a fence section and fence post, post foot and post cap or lintels that are purchased separately.

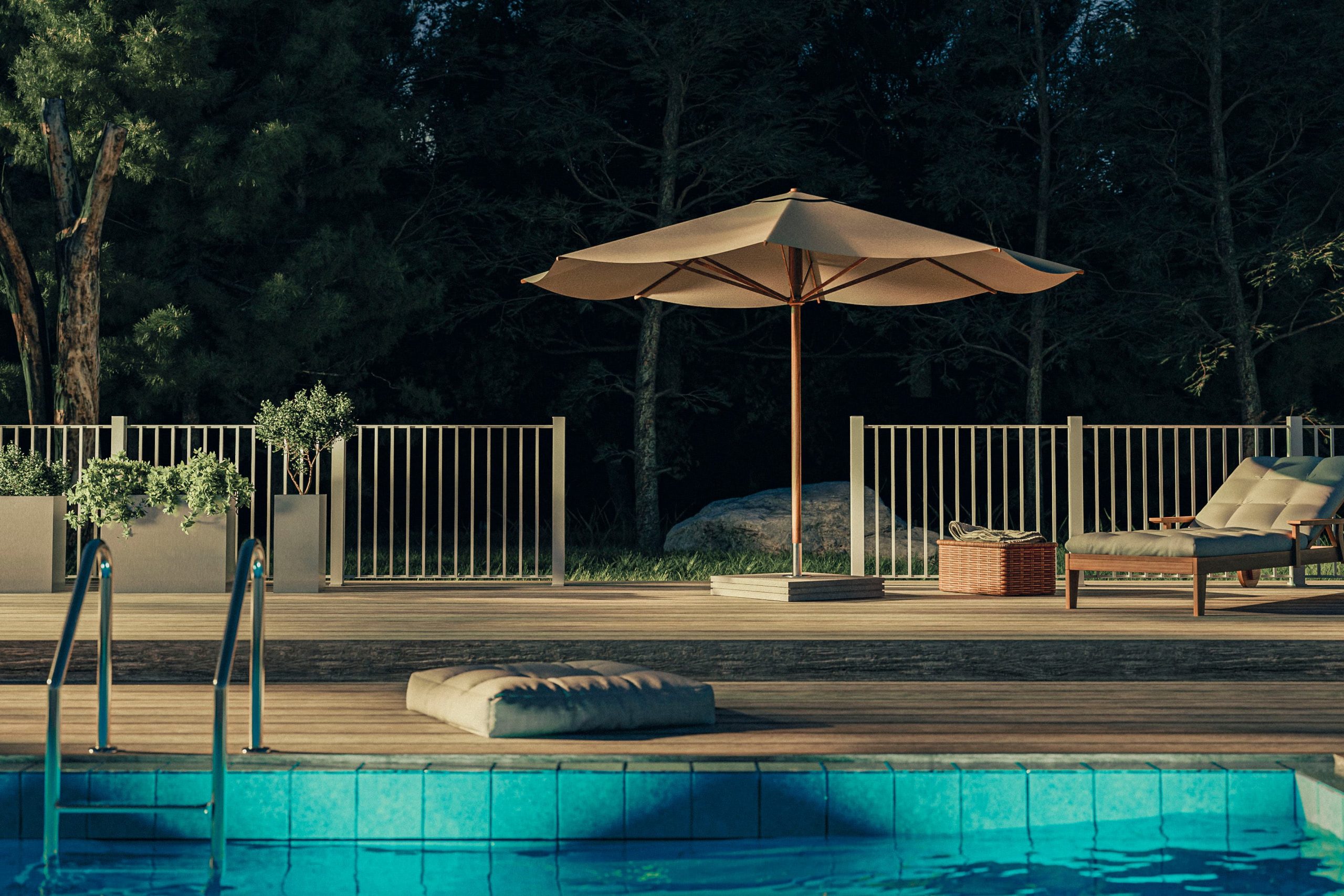

Adapted to meet the requirements set for fences around the pool area and higher fall height on balcony railings, this fence is classified as non-climbable. Therefore, the Lagan fence section is preferably installed around surfaces where there are requirements for fall height.

A ballot around the balcony, house or patio gives a classic and airy impression. Avoid maintenance and invest in a bar railing that will last for a long time to come. Made in Sweden in our own factory in Värnamo, we can of course solve special measurements if needed, contact us for more information.

Read more about general advice on railings from the National Board of Housing, Building and Planning:

https://www.boverket.se/sv/PBL-kunskapsbanken/regler-om-byggande/boverkets-byggregler/sakerhet-vid-anvandning/racken-och-ledstanger/

8:2321 Railings

Stairwells, stairwells, ramps and balconies that are not delimited by walls must have railings that limit the risk of personal injury as a result of falls. Railing fillings with fasteners must withstand the dynamic impact of a person. General advice Railings in stairwells should be at least 0.9 metres high. If an opening at the side of a stairwell is larger than 0.4 meters in both longitudinal directions and the floor height is more than 3.0 meters, measured from floor to floor, the railing should be at least 1.1 meters. The railings on the stairwells within the individual residential apartment should be at least 0.9 metres high. If the floor height is more than 3.0 metres, measured from floor to floor, the railing should be at least 1.1 metres. Railings on the stairwells outside the individual residential apartment and railings on balconies and walkways should be at least 1.1 meters high. Rules on glass balustrades can be found in section 8:35. Railings in areas where children can be present must be designed so that children do not injure themselves as a result of climbing or crawling.

General advice
Railings on balconies, stairways and stairwells should, up to a height of 0.8 meters, be designed so that they cannot be climbed on. Vertical openings should be no more than 100 mm wide.
The free measurement between the bottom edge of the balcony railing and the balcony floor, or between the bottom edge of a stair railing and the step nose of the stepladder, should be no more than 50 mm. The free height between the lower edge of a stair railing and a stairwell or floor should be no more than 100 mm.
Horizontal openings above the balcony front should be designed so that children cannot get stuck with their heads. Openings in the range of 110 to 230 mm should be avoided.
